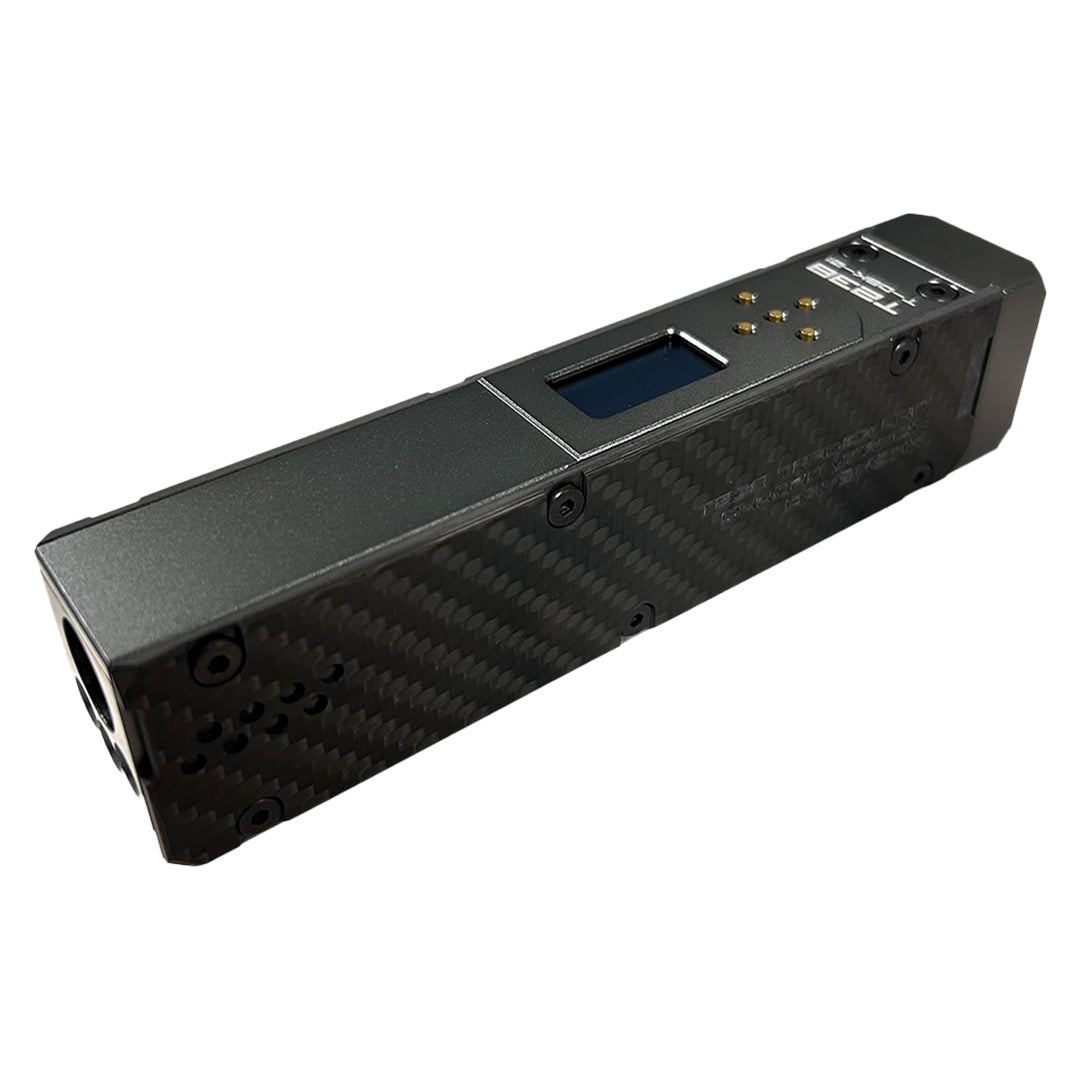

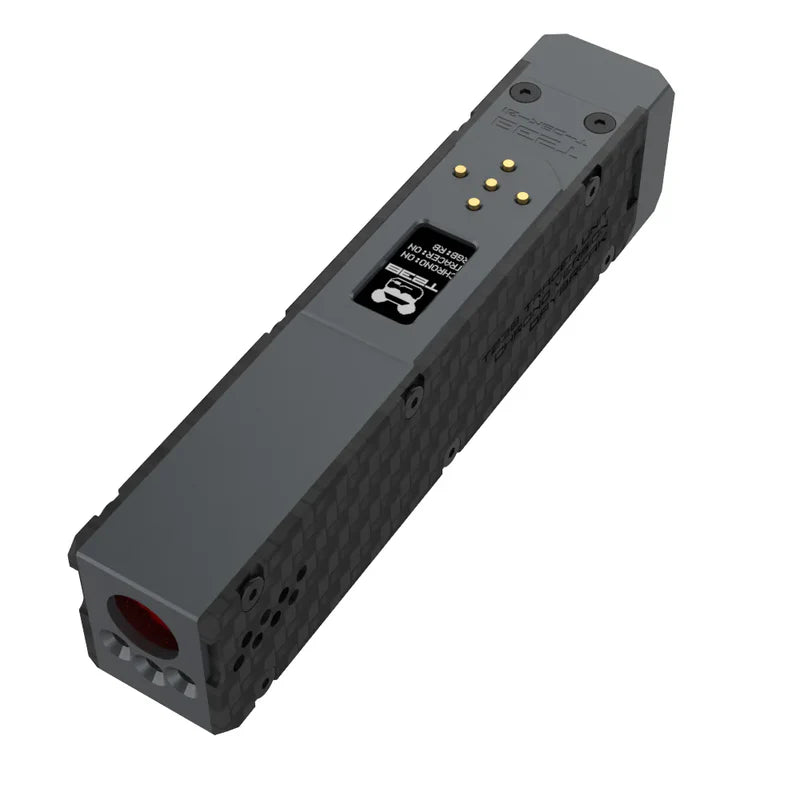

T238 Tracer Unit Chronograph Daybreak

The T238 Daybreak is a tracer unit that integrates chronograph, colourful gunfire simulator, and tracer projectile charger. lt can be installed at the barrel of toy launchers such as AlRSOFT/Gel Ball/Foam Dart, used to measure the firing rate and velocity of projectiles, and can record up to 99 historical data, calculate the maximum, minimum, and average velocity. lt can also customize the diameter and weight of projectiles, used to calculate the kinetic energy and specific kinetic energy of a projectile; In addition, personalized settings can be made for the simulated fire colour and effect through the button panel on the tracer unit, such as rainbow mode and dynamic fire mode; The tracer projectile charging function needs to be used in conjunction with dedicated tracer projectiles, which can light up the tracer projectiles passing through the inside of the tracer unit, allowing the tracer projectiles to display their flight trajectory in the dark.

Functions:

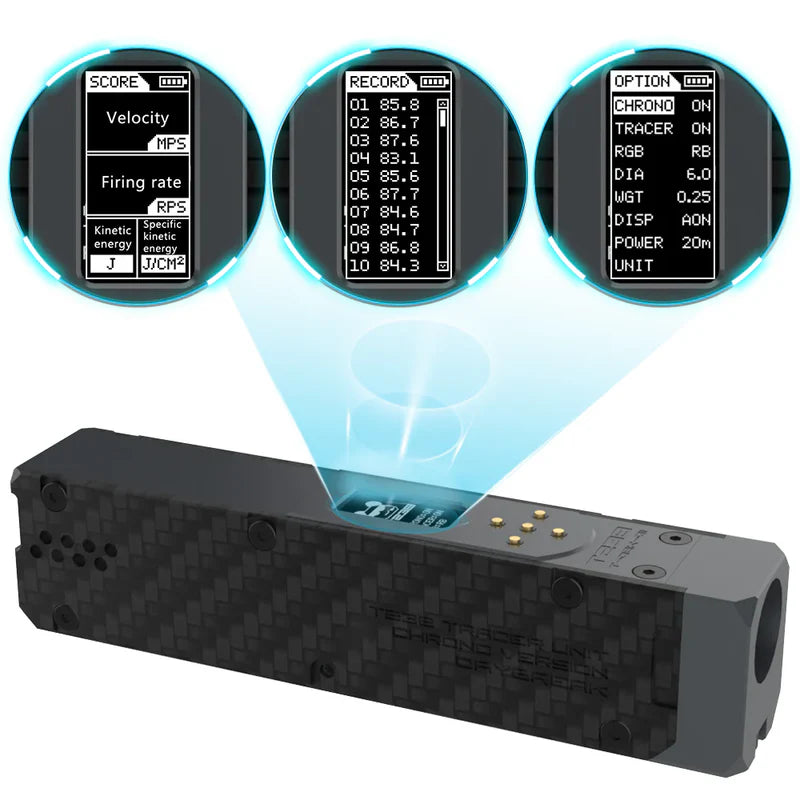

Chronograph: The Chronograph function can measure the flight speed, kinetic energy, and specific kinetic energy of BB/gel ball/foam dart, record 99 flight speed values, and calculate the average, maximum, and minimum values

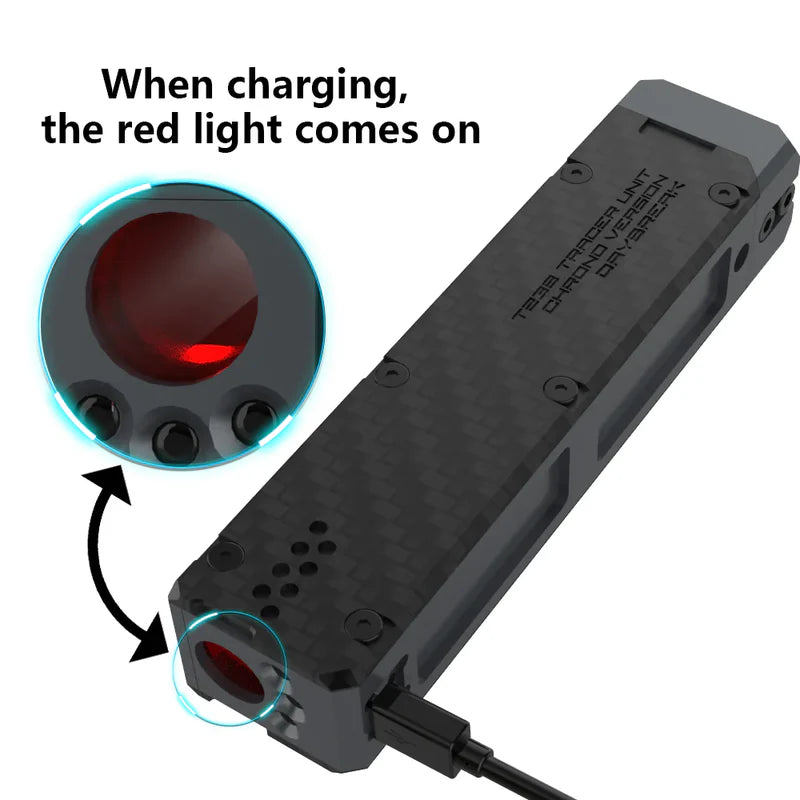

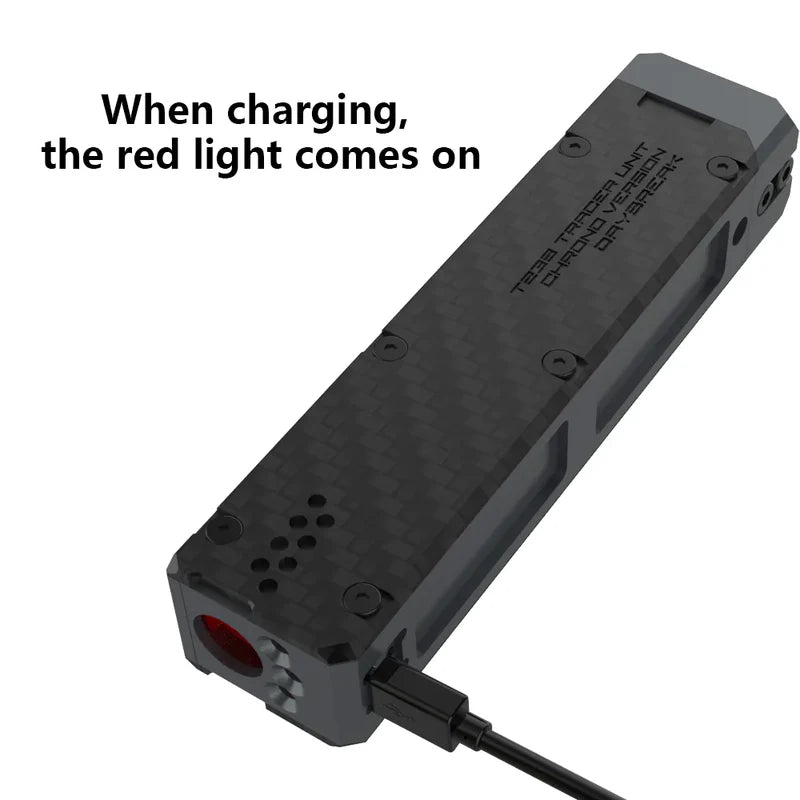

Tracer: This function is used to charge specialized tracer projectiles, causing them to emit light and maintain it for a period of time. By using this function, passing BB/gel ball/foam dart can be illuminated

Gun flame simulation: This function simulates gun flame through RGB LEDs and can change colour through buttons. There are a total of 9 colour modes including rainbow, dynamic rainbow, red, yellow, green, cyan, blue, pink, and white

Features:

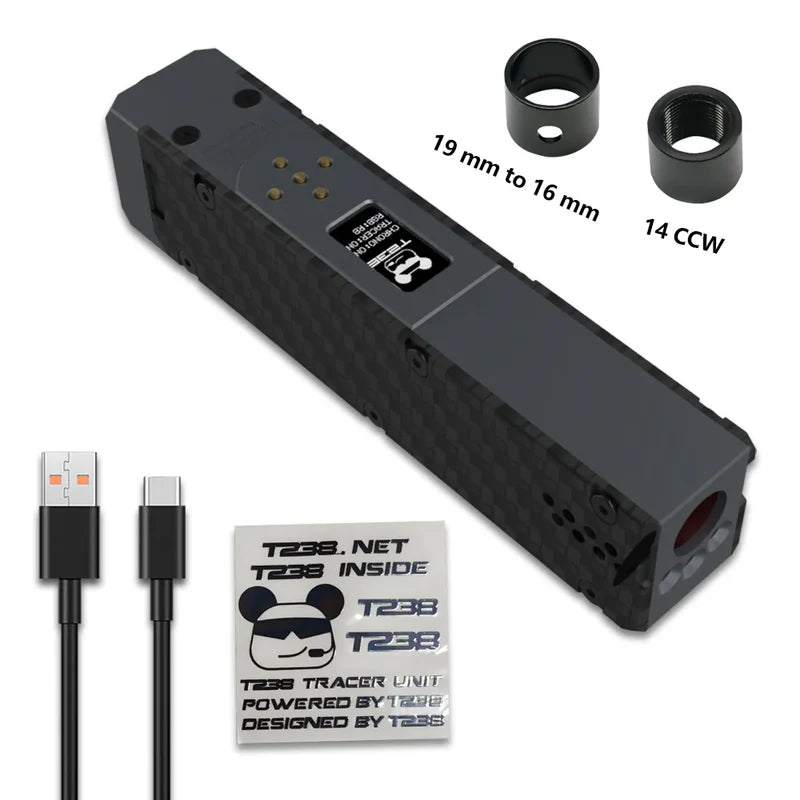

Weight: 200g Interface: 19mm (with 14mm CCW adapter and 16mm adapter) Function: Measure the projectile' s firing rate and velocity； Calculate the maximum, minimum, and average values of the initial velocity; Colourful gunfire simulation, tracer projectile charging (requires dedicated tracer projectiles)rainbow gunfire effect simulation, automatic shutdown after 20 minutes, low battery automatic shutdown

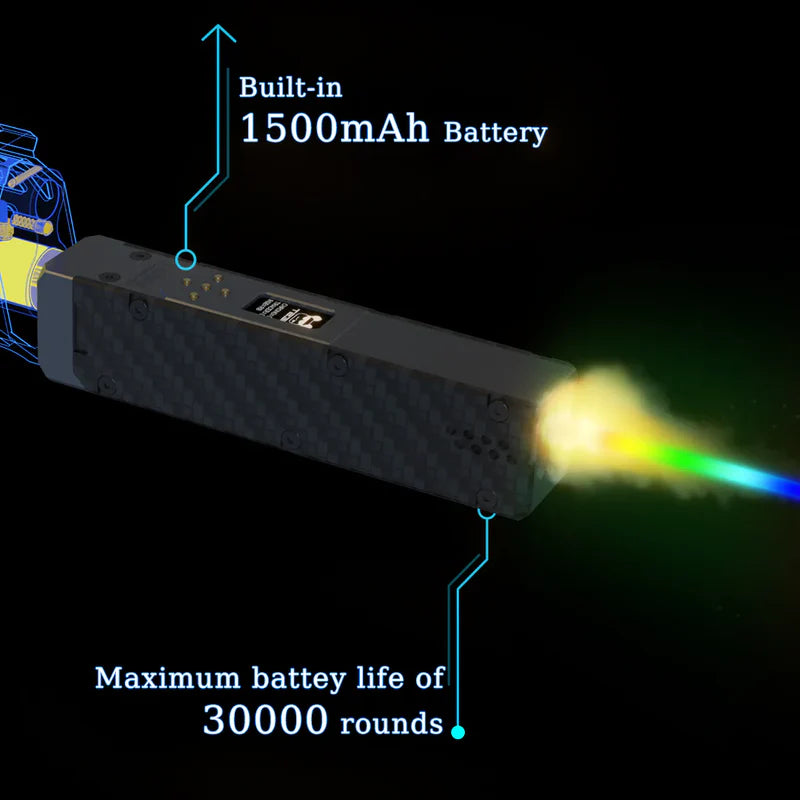

Supported firing rate: Tracer projectile charging supports up to 50RPS; The chronograph function supports a maximum of 80RPS Supporting projectile types: spherical and cylindrical bar shaped projectiles with an outer diameter of 6-13 Battery: 1500mAh, maximum range of 30000 rounds, charged using TYPE-C interface
